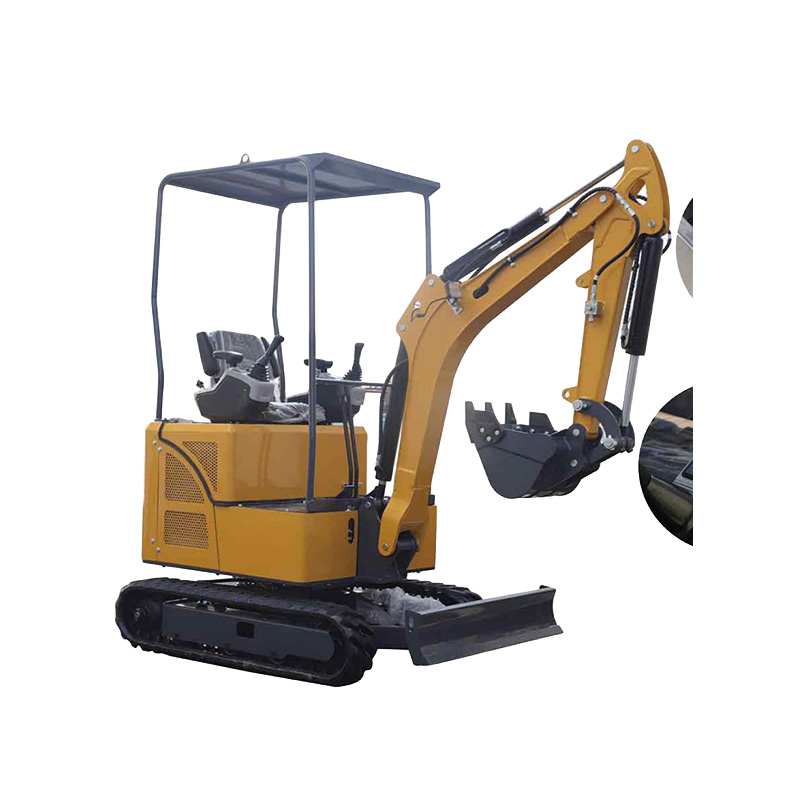

HT-17Q 1.7 Ton Mini Excavator: Compact, Strong and Easy to Transport
The HONGTAI HT-17Q 1.7 ton mini excavator is the most powerful machine in our compact range. A 24 HP Laidong KM385B diesel and 13.5 kN digging force let it dig to 2,340 mm (7.7 ft), deep enough for foundations, septic systems and utility trenches, while the top-mounted boom cylinder keeps the cylinder clear of rocks and trench walls.
Every HT-17Q is built and tested in our factory and supplied direct to equipment dealers, rental companies, landscapers and contractors worldwide, with OEM branding available.
Key Features
- Laidong KM385B diesel, 18.1 kW (24 HP)
- 2,340 mm digging depth and 3,680 mm maximum digging radius
- 13.5 kN digging force for hard and compacted ground
- Top-mounted boom cylinder protected from impact during trenching
- 360° full-swing upper structure with adjustable dozer blade
- Steel tracks optional for demolition and rocky sites
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Weight | ||
| Operating Weight | 1,700 kg | 3,748 lbs |
| Dimensions | ||
| Transport Length | 3,390 mm | 133.5 in |
| Transport Width | 1,100 mm | 43.3 in |
| Transport Height | 2,400 mm | 94.5 in |
| Working Range | ||
| Max. Digging Radius | 3,680 mm | 12.1 ft |
| Max. Digging Depth | 2,340 mm | 7.7 ft |
| Max. Digging Height | 3,245 mm | 10.6 ft |
| Max. Dumping Height | 2,320 mm | 7.6 ft |
| Max. Digging Force | 13.5 kN | 3,035 lbf |
| Engine & Travel | ||
| Engine | Laidong KM385B diesel | |
| Max. Power | 18.1 kW | 24 HP |
| Travel Speed | 0 – 1.8 km/h | 0 – 1.1 mph |
| Climbing Angle | 30° | 30° (58% grade) |
| Options | ||
| Optional Attachments | Hydraulic breaker (hammer), ripper, log grapple, rake, auger drill, large bucket, mud (ditching) bucket | |
| Track Option | Steel tracks available | |
Specifications are taken from our factory brochure and may vary with configuration. Contact us for the latest datasheet.
Standard Configuration
Laidong KM385B diesel engine, top-mounted boom cylinder, hoses with NOK seals, adjustable dozer blade, wear-resistant rubber tracks, adjustable seat, standard bucket, canopy.
Optional Attachments
Hydraulic breaker (hammer), ripper, log grapple, rake, auger drill, large bucket, mud (ditching) bucket. Attachments can be supplied with the machine and loaded in the same container.
Typical Applications
- Indoor and confined-space demolition
- Trenching for cables, water and drainage pipes
- Landscaping, garden and planting work
- Concrete breaking and road repair
- River, ditch and pond dredging
- Small earthworks and municipal projects
Factory Direct for Dealers and Rental Fleets
- Factory-direct pricing with volume tiers for dealers
- OEM / ODM: custom colors, private labeling and engine options. See our OEM & export services.
- Export packing: machines and attachments secured for ocean freight in 20GP / 40HQ containers
- Spare parts: wear parts and hydraulic components available for your service team
Request a Quote for the HT-17Q
Tell us your destination port, quantity, engine preference and attachments. Our export team will reply with factory-direct pricing, a container loading plan and the full technical datasheet.
