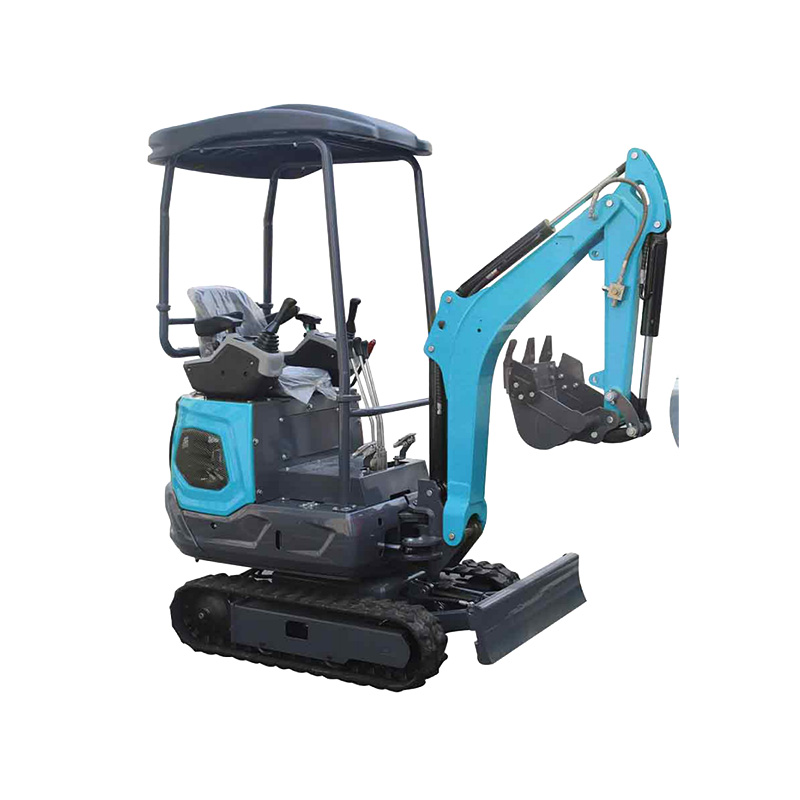

HT-15Q Kubota Mini Excavator: Compact, Strong and Easy to Transport
The HONGTAI HT-15Q Kubota mini excavator pairs a genuine Kubota D722 three-cylinder diesel with a 1,350 kg compact frame. Kubota power is recognized by dealers and service shops worldwide, making the HT-15Q an easy machine to sell, rent and support in North American and European markets.
Every HT-15Q is built and tested in our factory and supplied direct to equipment dealers, rental companies, landscapers and contractors worldwide, with OEM branding available.
Key Features
- Genuine Kubota D722 diesel engine, 10.2 kW (13.9 HP)
- 930 – 1,105 mm working width for narrow access and a stable stance
- 9 kN digging force and 3,057 mm maximum digging radius
- 360° full-swing upper structure
- Mounted safety lock and LED LCD display
- Steel tracks optional for demolition and rocky ground
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Weight | ||
| Operating Weight | 1,350 kg | 2,976 lbs |
| Dimensions | ||
| Transport Length | 2,981 mm | 117.4 in |
| Width | 930 – 1,105 mm | 36.6 – 43.5 in |
| Transport Height | 2,287 mm | 90.0 in |
| Working Range | ||
| Max. Digging Radius | 3,057 mm | 10.0 ft |
| Max. Digging Depth | 1,717 mm | 5.6 ft |
| Max. Digging Height | 2,717 mm | 8.9 ft |
| Max. Dumping Height | 1,966 mm | 6.5 ft |
| Max. Digging Force | 9 kN | 2,023 lbf |
| Engine & Travel | ||
| Engine | Kubota D722 diesel | |
| Max. Power | 10.2 kW | 13.9 HP |
| Climbing Angle | 30° | 30° (58% grade) |
| Options | ||
| Optional Attachments | Hydraulic breaker (hammer), ripper, log grapple, rake, auger drill, large bucket, mud (ditching) bucket | |
| Track Option | Steel tracks available | |
Specifications are taken from our factory brochure and may vary with configuration. Contact us for the latest datasheet.
Standard Configuration
Kubota D722 diesel engine, hoses with NOK seals, adjustable dozer blade, wear-resistant rubber tracks, adjustable seat, standard bucket, canopy, mounted safety lock, LED LCD display.
Optional Attachments
Hydraulic breaker (hammer), ripper, log grapple, rake, auger drill, large bucket, mud (ditching) bucket. Attachments can be supplied with the machine and loaded in the same container.
Typical Applications
- Indoor and confined-space demolition
- Trenching for cables, water and drainage pipes
- Landscaping, garden and planting work
- Concrete breaking and road repair
- River, ditch and pond dredging
- Small earthworks and municipal projects
Factory Direct for Dealers and Rental Fleets
- Factory-direct pricing with volume tiers for dealers
- OEM / ODM: custom colors, private labeling and engine options. See our OEM & export services.
- Export packing: machines and attachments secured for ocean freight in 20GP / 40HQ containers
- Spare parts: wear parts and hydraulic components available for your service team
Request a Quote for the HT-15Q
Tell us your destination port, quantity, engine preference and attachments. Our export team will reply with factory-direct pricing, a container loading plan and the full technical datasheet.
