HT-1000L: One-Ton Capacity in a 700 mm Wide Tracked Dumper

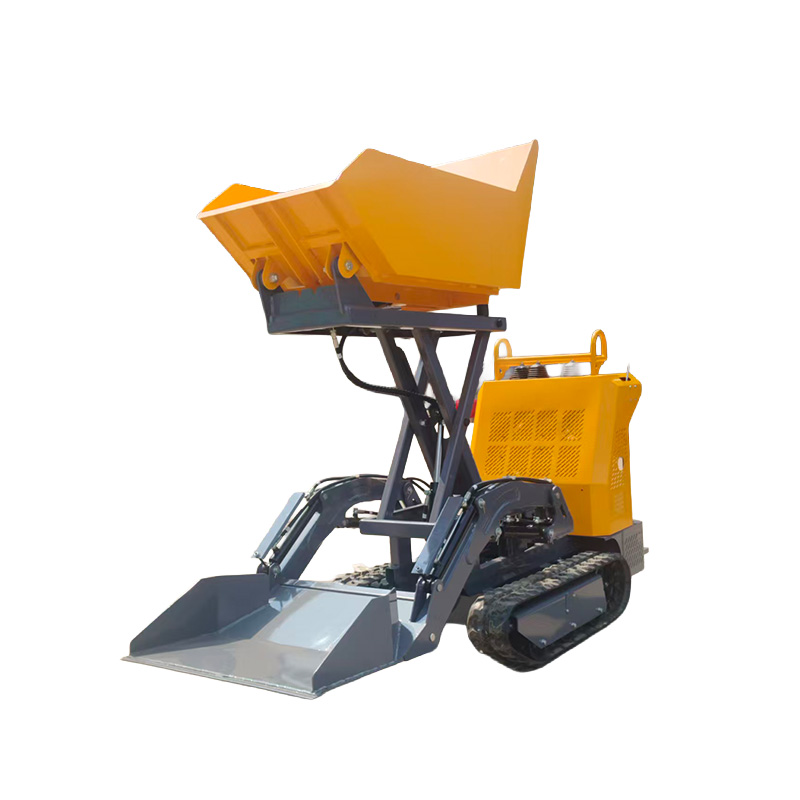

The HONGTAI HT-1000L self-loading lift tracked dumper is the heavy-duty model in our range. It carries up to 1,000 kg in its 1,450 × 650 × 400 mm container, fills itself with a front loading bucket, and raises loads of up to 800 kg on its hydraulic lift tipper to empty into skips, trailers and hoppers.
A RATO R500 19.5 HP gasoline engine and a 20 L hydraulic system give it the power for full loads on slopes and soft ground, while the 700 mm (27.6 in) wide rubber-track chassis still fits through standard gates and narrow site access.
An EU Stage V type-approved engine version (RATO R500-V) can be supplied for European projects. See the certificate in our Download Center and confirm the engine for your order with our export team.
Key Features
- 1,000 kg transport load and 800 kg maximum lifting capacity
- Self-loading front bucket and hydraulic lift tipper
- RATO R500 500 cc gasoline engine, 19.5 HP / 11 kW
- 1,450 × 650 × 400 mm load container
- 700 mm wide rubber tracks with 1,200 mm ground contact
- 20 L hydraulic tank and 6.9 L fuel tank
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Load & Tipping | ||
| Max. Transport Load (horizontal) | 1,000 kg | 2,205 lbs |
| Max. Lifting Capacity | 800 kg | 1,764 lbs |
| Container Size | 1,450 × 650 × 400 mm | 57.1 × 25.6 × 15.7 in |
| Loading Bucket Size | 700 × 800 × 220 mm | 27.6 × 31.5 × 8.7 in |
| Dumping | Hydraulic lift bucket | |
| Dumping Angle | 100° | 100° |
| Dimensions & Weight | ||
| Machine Weight | 690 kg | 1,521 lbs |
| Overall Size (with pedal & bucket) | 2,000 × 900 × 2,000 mm | 78.7 × 35.4 × 78.7 in |
| Undercarriage | ||
| Chassis Width | 700 mm | 27.6 in |
| Track Width | 180 mm | 7.1 in |
| Track Ground Contact Length | 1,200 mm | 47.2 in |
| Ground Clearance | 110 mm | 4.3 in |
| Engine & Hydraulics | ||
| Engine | RATO R500, single-cylinder, four-stroke gasoline | |
| Displacement | 500 cc | 30.5 in³ |
| Rated Power | 11 kW / 3,600 rpm | 19.5 HP |
| Fuel | Unleaded gasoline (RON 92) | |
| Fuel Tank | 6.9 L | 1.8 US gal |
| Engine Oil | 1.2 L | 1.3 US qt |
| Hydraulic Oil | ISO VG 46 anti-wear | |
| Hydraulic Oil Tank | 20 L | 5.3 US gal |
Specifications are taken from our factory data sheet and may vary with configuration. Contact us for the latest datasheet.
Why the HT-1000L?
- Double the payload of a 500 kg dumper, so fewer trips on large jobs.
- Self-loading bucket removes the need for a separate loader or extra labor.
- Lift tipper empties directly into skips and trucks.
Typical Applications
- Moving soil, gravel, sand and rubble on building and landscaping sites
- Carrying bricks, blocks, paving and building materials through narrow access
- Backyard excavation and spoil removal behind homes and terraces
- Loading skips and containers with the raised or rotating tipper
- Farm, orchard, nursery and stable material handling
- Rental fleets serving builders, landscapers and homeowners
Other Models
For lighter work, see the HT-500L high lift dumper and the HT-500R rotary dumper, both with 500 kg capacity. Browse all mini tracked dumpers.
Factory Direct for Dealers and Rental Fleets
- Factory-direct pricing with volume tiers for dealers
- OEM / ODM: custom colors, private labeling and configuration options. See our OEM & export services.
- Export packing: machines secured on steel frames for ocean freight in 20GP / 40HQ containers
- Spare parts: rubber tracks, hydraulic cylinders, valves and engine parts available for your service team
Request a Quote for the HT-1000L
Tell us your destination port, quantity and preferred color. Our export team will reply with factory-direct pricing, a container loading plan and the full technical datasheet.
