HT-500L: Lift the Load, Then Tip It Where You Need It

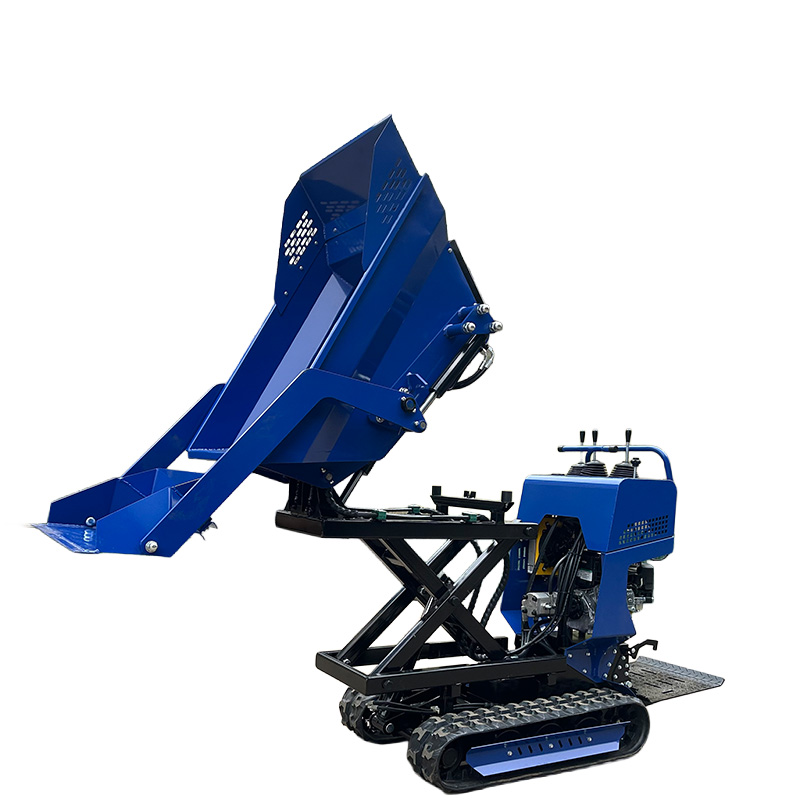

The HONGTAI HT-500L high lift tracked dumper carries up to 500 kg across soft or uneven ground and then raises its 200 L load box on a scissor lift to 1,400 mm. That lets the operator tip straight into skips, trailers, mixers and raised beds instead of shoveling material a second time.
A Briggs & Stratton XR950 gasoline engine drives the hydraulics and the 700 mm (27.6 in) wide rubber tracks, so the HT-500L passes through garden gates and narrow side access while keeping ground pressure low on lawns and finished surfaces.
Key Features
- Scissor-lift tipper raises the 200 L load box to 1,400 mm
- 500 kg maximum load
- Briggs & Stratton XR950 208 cc gasoline engine, 6.5 HP
- Hydraulic tipping with 100° tipping angle
- 700 mm wide rubber-track chassis, 490 kg
- 1.15 m turning radius for tight sites
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Load & Tipping | ||
| Maximum Load | 500 kg | 1,102 lbs |
| Load Box Capacity | 200 L | 7.1 ft³ |
| Load Box Size | 1,050 × 730 × 730 mm | 41.3 × 28.7 × 28.7 in |
| Lifting Height | 1,400 mm | 55.1 in |
| Tipping | Hydraulic, scissor-lift tipper | |
| Tipping Angle | 100° | 100° |
| Rotation Angle | 180° | 180° |
| Dimensions & Weight | ||
| Machine Weight | 490 kg | 1,080 lbs |
| Overall Size (L × W × H) | 1,570 × 880 × 2,300 mm | 61.8 × 34.6 × 90.6 in |
| Undercarriage & Travel | ||
| Chassis Width | 700 mm | 27.6 in |
| Track Width | 180 mm | 7.1 in |
| Track Ground Contact Length | 1,000 mm | 39.4 in |
| Track Center Distance | 520 mm | 20.5 in |
| Ground Clearance | 110 mm | 4.3 in |
| Travel Speed | 2.88 km/h | 1.8 mph |
| Min. Turning Radius | 1.15 m | 3.8 ft |
| Engine & Hydraulics | ||
| Engine | Briggs & Stratton XR950, single-cylinder, four-stroke, air-cooled gasoline | |
| Displacement | 208 cc | 12.7 in³ |
| Rated Power | 6.5 HP / 3,600 rpm | 6.5 HP |
| Fuel | Unleaded gasoline (RON 92) | |
| Fuel Consumption | ≤ 395 g/kWh | — |
| Fuel Tank | 3.1 L | 0.8 US gal |
| Engine Oil | 0.6 L | 0.6 US qt |
| Hydraulic Oil | ISO VG 46 anti-wear | |
| Hydraulic Oil Tank | 15 L | 4.0 US gal |
Specifications are taken from our factory data sheet and may vary with configuration. Contact us for the latest datasheet.
Why a High Lift Dumper?
- Tip into skips and trailers directly, with no double handling.
- Fill mixers and hoppers from above on building sites.
- Faster cleanup on landscaping and renovation jobs where waste must go into a container.
Typical Applications
- Moving soil, gravel, sand and rubble on building and landscaping sites
- Carrying bricks, blocks, paving and building materials through narrow access
- Backyard excavation and spoil removal behind homes and terraces
- Loading skips and containers with the raised or rotating tipper
- Farm, orchard, nursery and stable material handling
- Rental fleets serving builders, landscapers and homeowners
Other Models
Need to dump to the side? See the HT-500R rotary tracked dumper. For heavier loads, the HT-1000L self-loading lift dumper carries up to 1,000 kg. Browse all mini tracked dumpers.
Factory Direct for Dealers and Rental Fleets
- Factory-direct pricing with volume tiers for dealers
- OEM / ODM: custom colors, private labeling and configuration options. See our OEM & export services.
- Export packing: machines secured on steel frames for ocean freight in 20GP / 40HQ containers
- Spare parts: rubber tracks, hydraulic cylinders, valves and engine parts available for your service team
Request a Quote for the HT-500L
Tell us your destination port, quantity and preferred color. Our export team will reply with factory-direct pricing, a container loading plan and the full technical datasheet.
