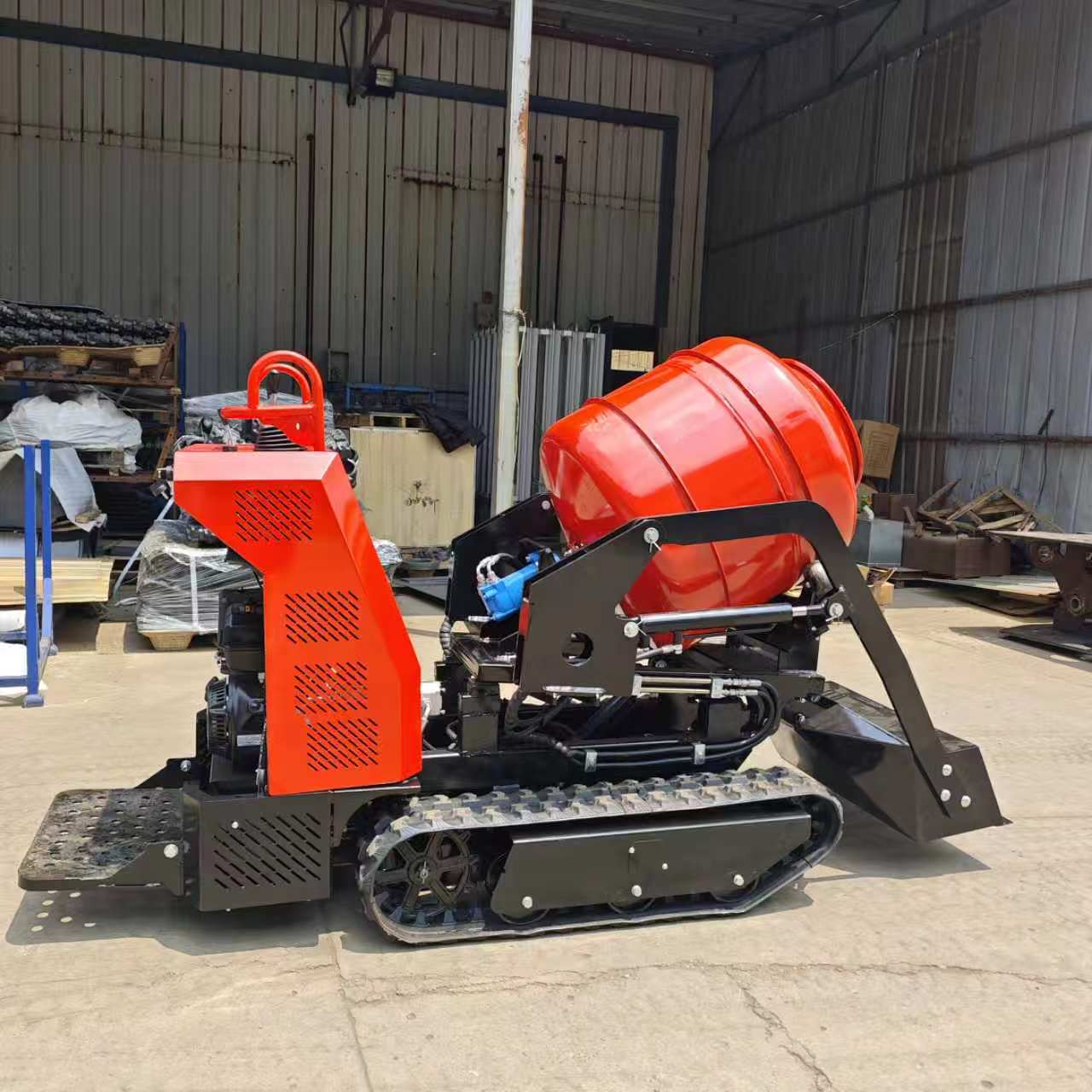

HT-CM300: Fast, Frequent Batches on Tight Job Sites

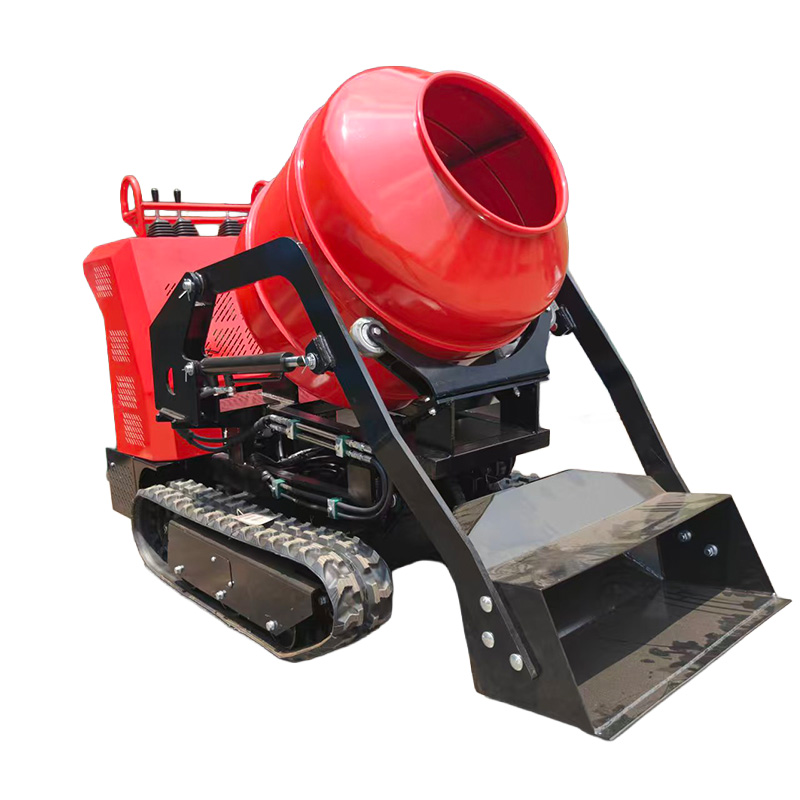

The HONGTAI HT-CM300 self-loading tracked concrete mixer is sized for crews that pour little and often: fence posts, footings, steps and repair work where a 300 L batch is placed and finished before the next one is mixed. The front loader-style bucket fills the drum through a wide 750 mm mouth, the drum mixes on the move, and a 100° hydraulic dumping angle empties it cleanly at the pour point.
A Rato R420 15 HP gasoline engine drives the hydraulics and the 700 mm (27.6 in) wide rubber-track chassis, so the HT-CM300 keeps working on soft ground, slopes and narrow access routes where wheelbarrows and towed mixers slow the job down.
Key Features
- 300 L drum with front self-loading bucket
- Rato R420 420 cc gasoline engine, 15 HP
- 100° hydraulic dumping angle for clean, complete pours
- 750 mm mixing mouth and 760 mm hopper spout for fast loading
- 700 mm wide rubber-track chassis, 1,200 mm track contact
- 6.6 L fuel tank and 20 L hydraulic oil tank
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Mixing Drum & Loader | ||
| Drum Capacity | 300 L | 10.6 ft³ / 79.3 US gal |
| Mixing Mouth Diameter | 750 mm | 29.5 in |
| Mixing Drum Length | 1,050 mm | 41.3 in |
| Hopper Spout Width | 760 mm | 29.9 in |
| Dumping Angle | 100° | 100° |
| Dimensions & Weight | ||
| Machine Weight | 690 kg | 1,521 lbs |
| Overall Size (L × W × H, with pedal & bucket) | 2,000 × 900 × 2,000 mm | 78.7 × 35.4 × 78.7 in |
| Chassis Width | 700 mm | 27.6 in |
| Ground Clearance | 110 mm | 4.3 in |
| Undercarriage | ||
| Track Width | 180 mm | 7.1 in |
| Track Ground Contact Length | 1,200 mm | 47.2 in |
| Engine & Hydraulics | ||
| Engine | Rato R420, single-cylinder, four-stroke gasoline | |
| Displacement | 420 cc | 25.6 in³ |
| Rated Power | 15 HP / 3,600 rpm | 15 HP |
| Fuel | Unleaded gasoline (RON 92) | |
| Fuel Tank | 6.6 L | 1.7 US gal |
| Engine Oil | 1.1 L | 1.2 US qt |
| Hydraulic Oil | ISO VG 46 anti-wear | |
| Hydraulic Oil Tank | 20 L | 5.3 US gal |
Specifications are taken from our factory data sheet and may vary with configuration. Contact us for the latest datasheet.
Why a 300 L Drum?
- Manageable batches: each load can be placed and finished before the concrete starts to set.
- Less waste on small pours such as post holes, pads and repairs.
- Same 15 HP power unit and chassis as the HT-CM500, so parts and servicing are shared across your fleet.
Typical Applications
- Foundations, footings and slabs in backyards and extensions
- Fence post, pole and sign base concreting
- Paths, patios, steps and small retaining walls
- Renovation work where a full-size mixer truck cannot reach
- Farm, stable and rural building projects
- Rental fleets serving builders and homeowners
Other Sizes
Need more output per trip? See the HT-CM500 500 L tracked mixer. For the tightest spaces, the HT-CM200 200 L mixer weighs only 465 kg. Browse all mini concrete mixers.
Factory Direct for Dealers and Rental Fleets
- Factory-direct pricing with volume tiers for dealers
- OEM / ODM: custom colors, private labeling and configuration options. See our OEM & export services.
- Export packing: machines secured on steel frames for ocean freight in 20GP / 40HQ containers
- Spare parts: drum seals, tracks, hydraulic components and engine parts available for your service team
Request a Quote for the HT-CM300
Tell us your destination port, quantity and preferred color. Our export team will reply with factory-direct pricing, a container loading plan and the full technical datasheet.
